Description

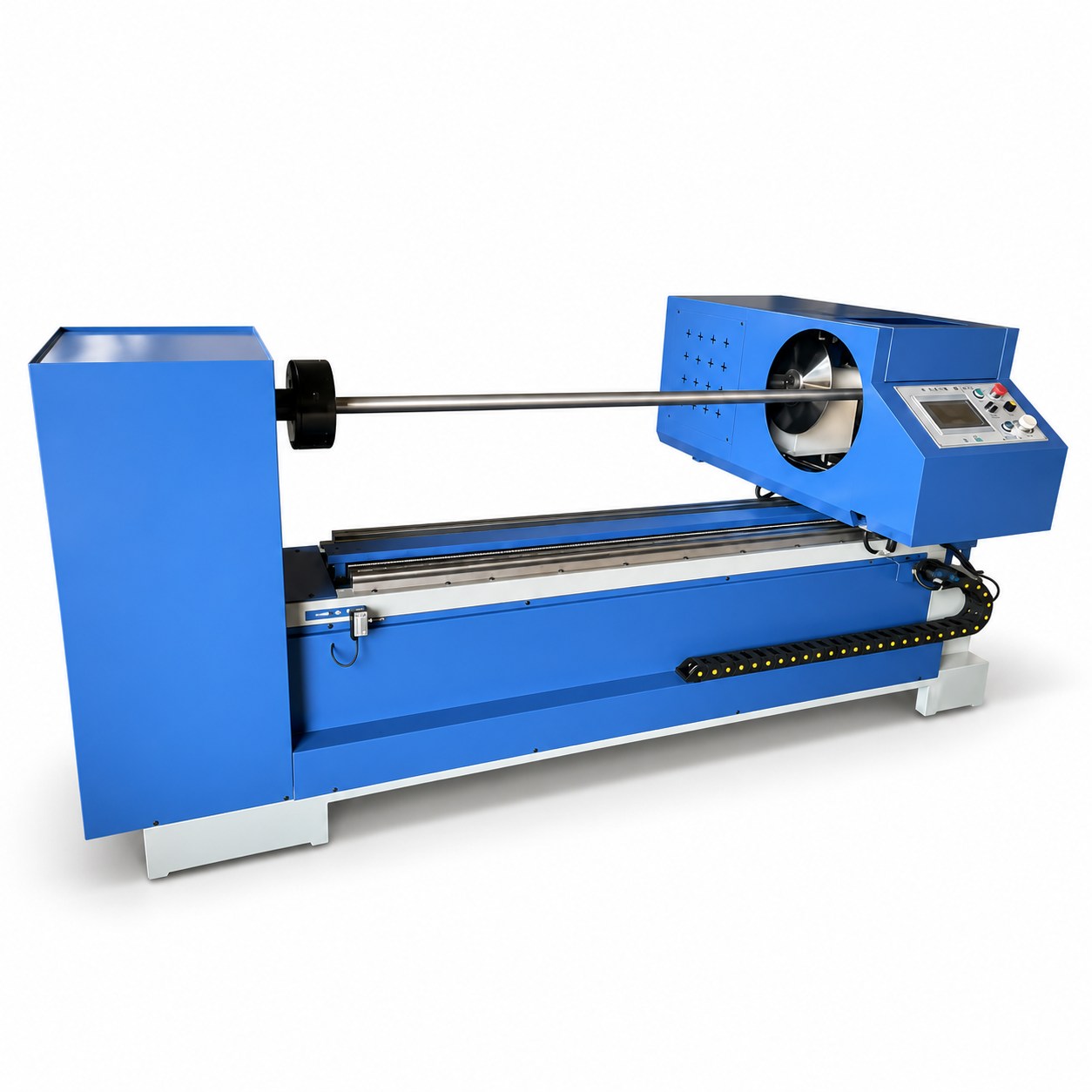

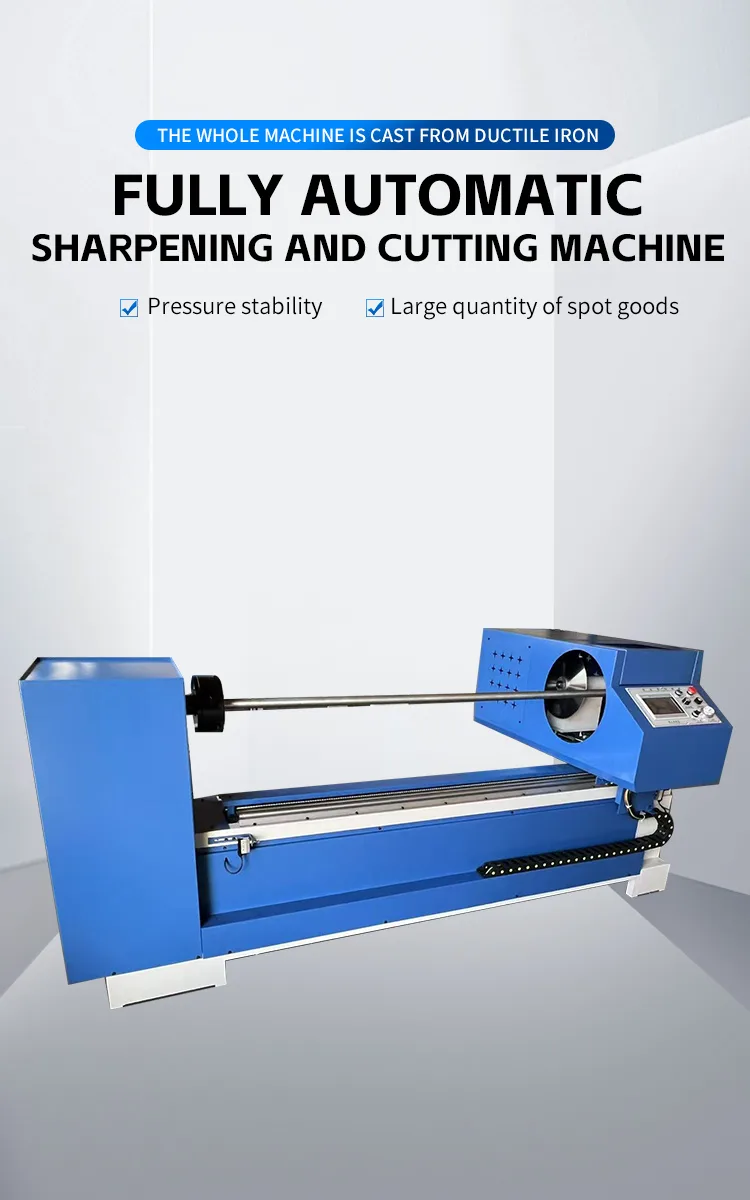

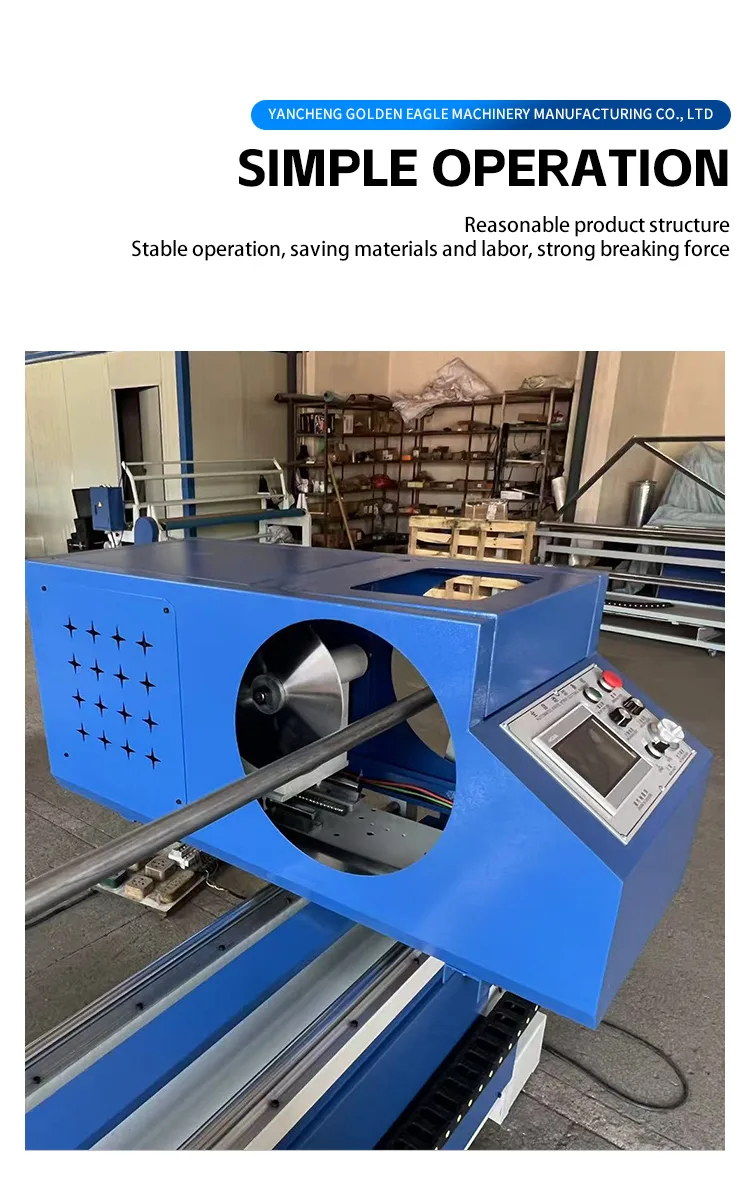

The GEA-S1800 is an automatic fabric roll slitting machine with a listed working width of 1800 mm and PLC control. The page lists applications in nonwoven cloth and other suitable soft materials.
Key Specifications
| Model: | GEA-S1800 |
| Machine Type: | Slitting Machine |
| Working Area: | 1800 mm |
| Automatic Grade: | Automatic |
| Core Components: | PLC, Gearbox, Gear |
| Power: | 2000 W |
| Voltage: | 220 V / 380 V |
| Weight: | 1100 kg |
| Warranty: | 1 Year |

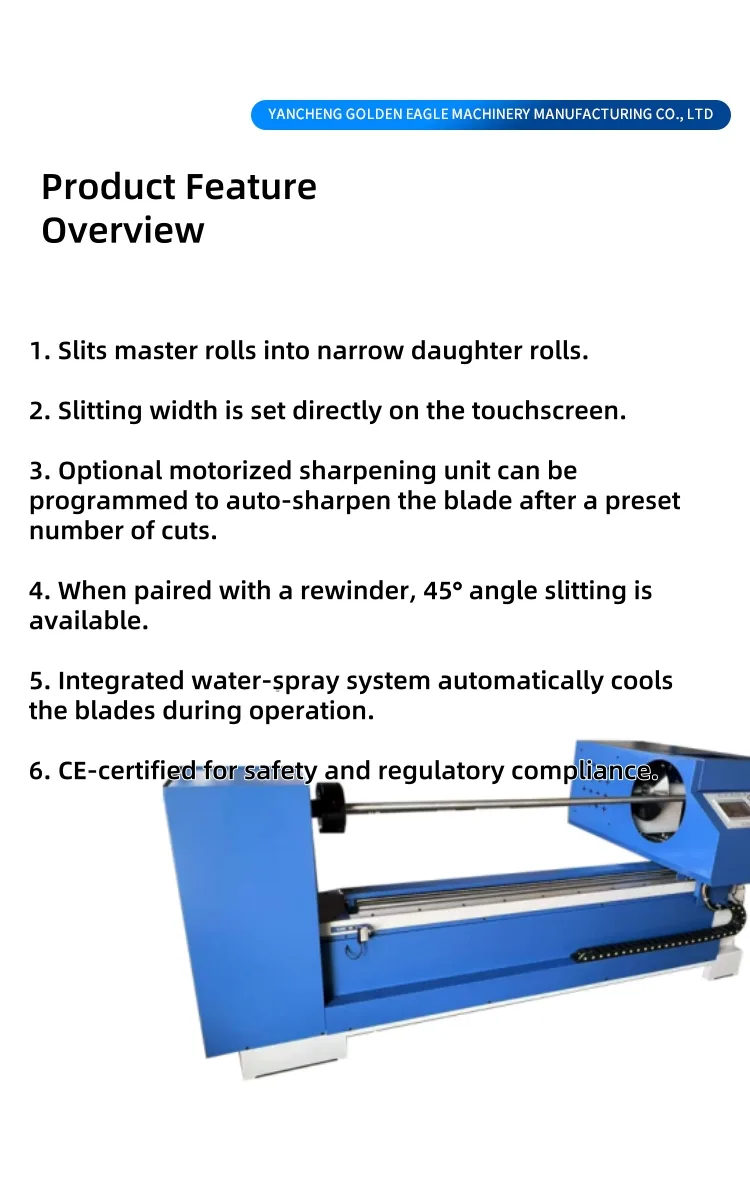

The machine cuts a complete roll into narrower rolls. Large rolls require a separate rewinding machine to prepare smaller rolls before cutting. The listed cutting accuracy is 0.1 mm.
Choose the Roll-Cutting Configuration
Provide the incoming roll width, outside diameter, core dimensions and required finished-roll widths. Confirm how large incoming rolls will be prepared and which handling equipment is included.
See the GEA-V1800 cloth configuration and GEA-S2000 binding-tape configuration.
Product Gallery
About Our Company

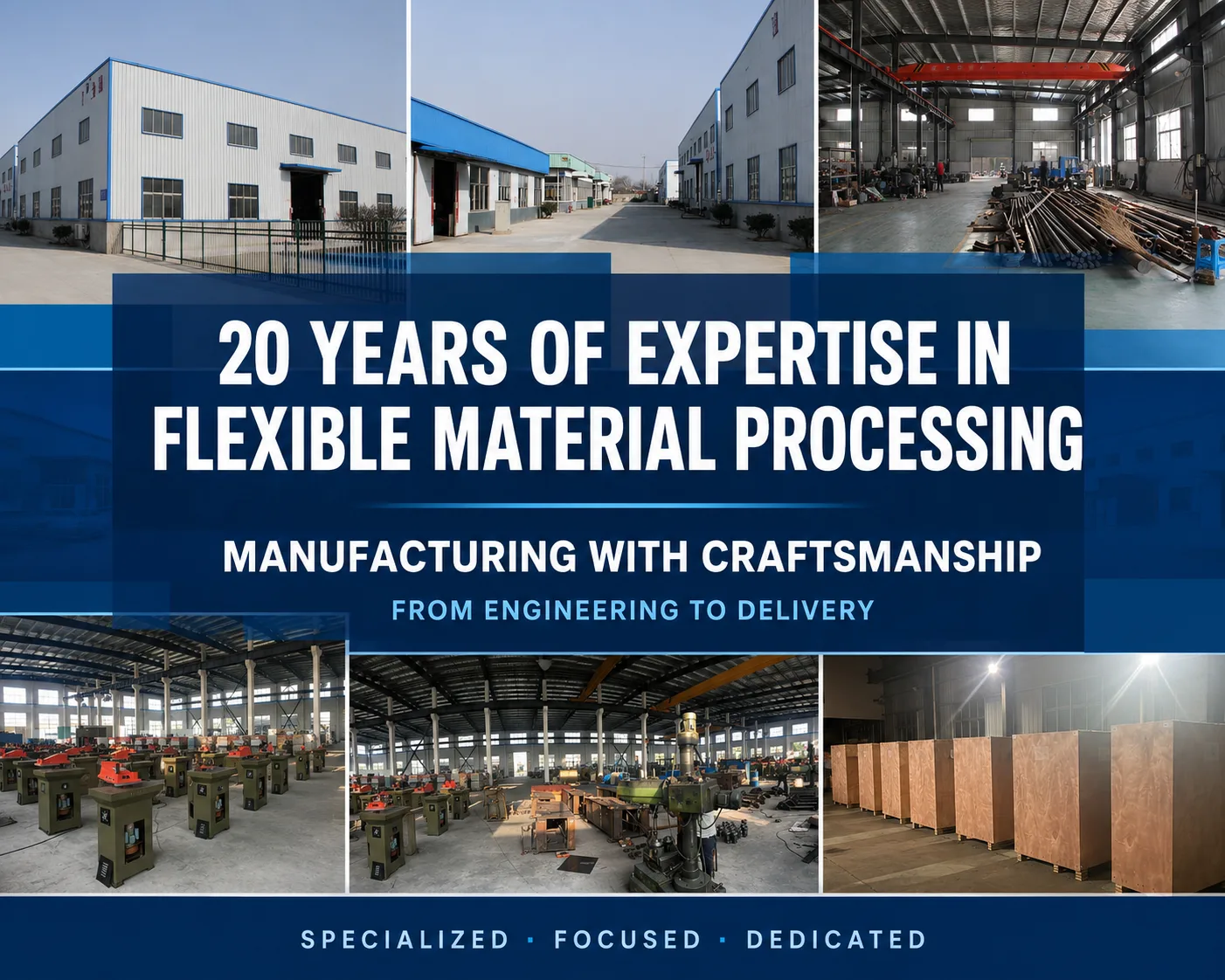

Yancheng Golden Eagle Machinery Manufacturing Co., Ltd. has manufactured flexible-material processing machinery since 2007.

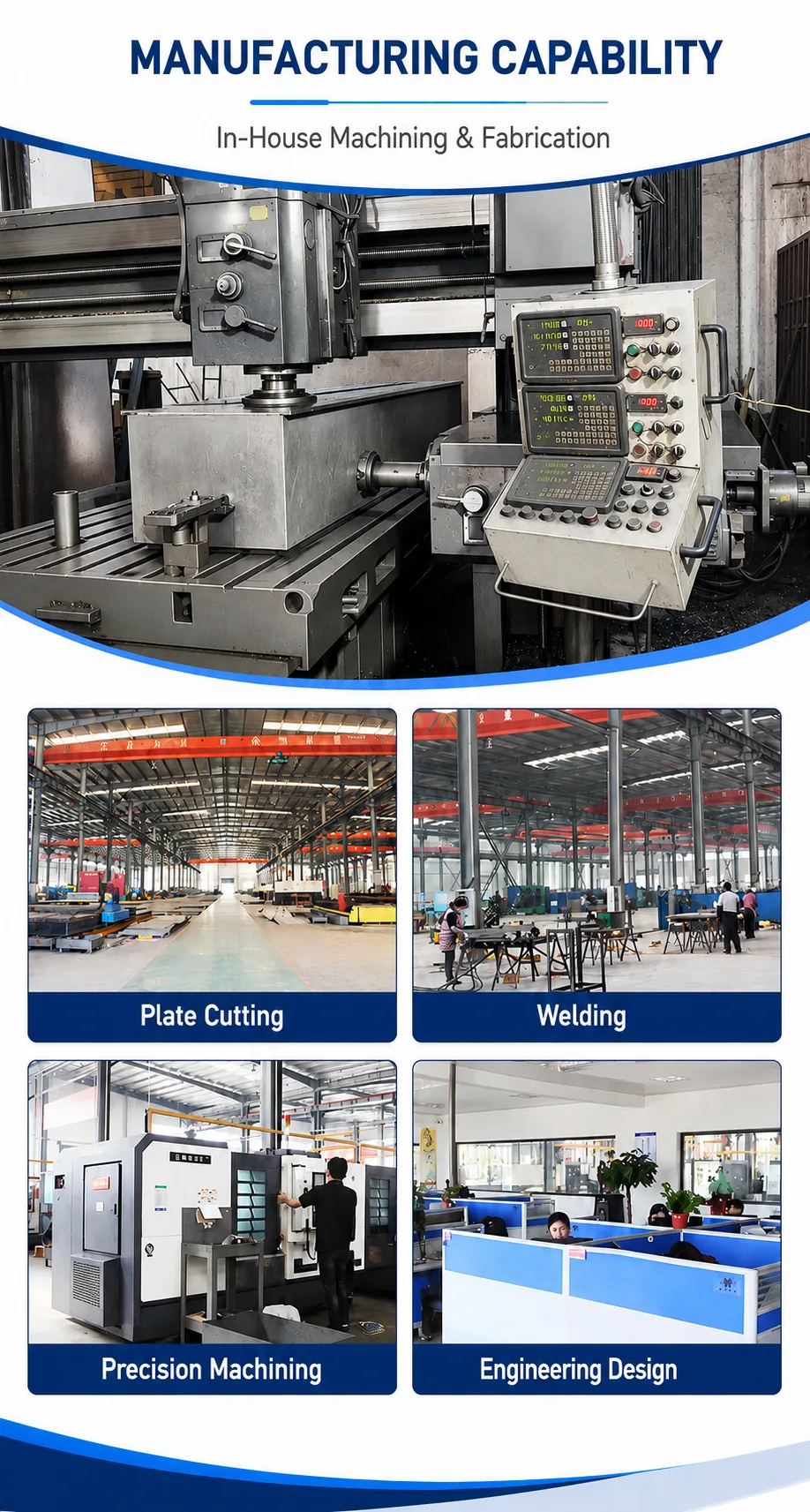

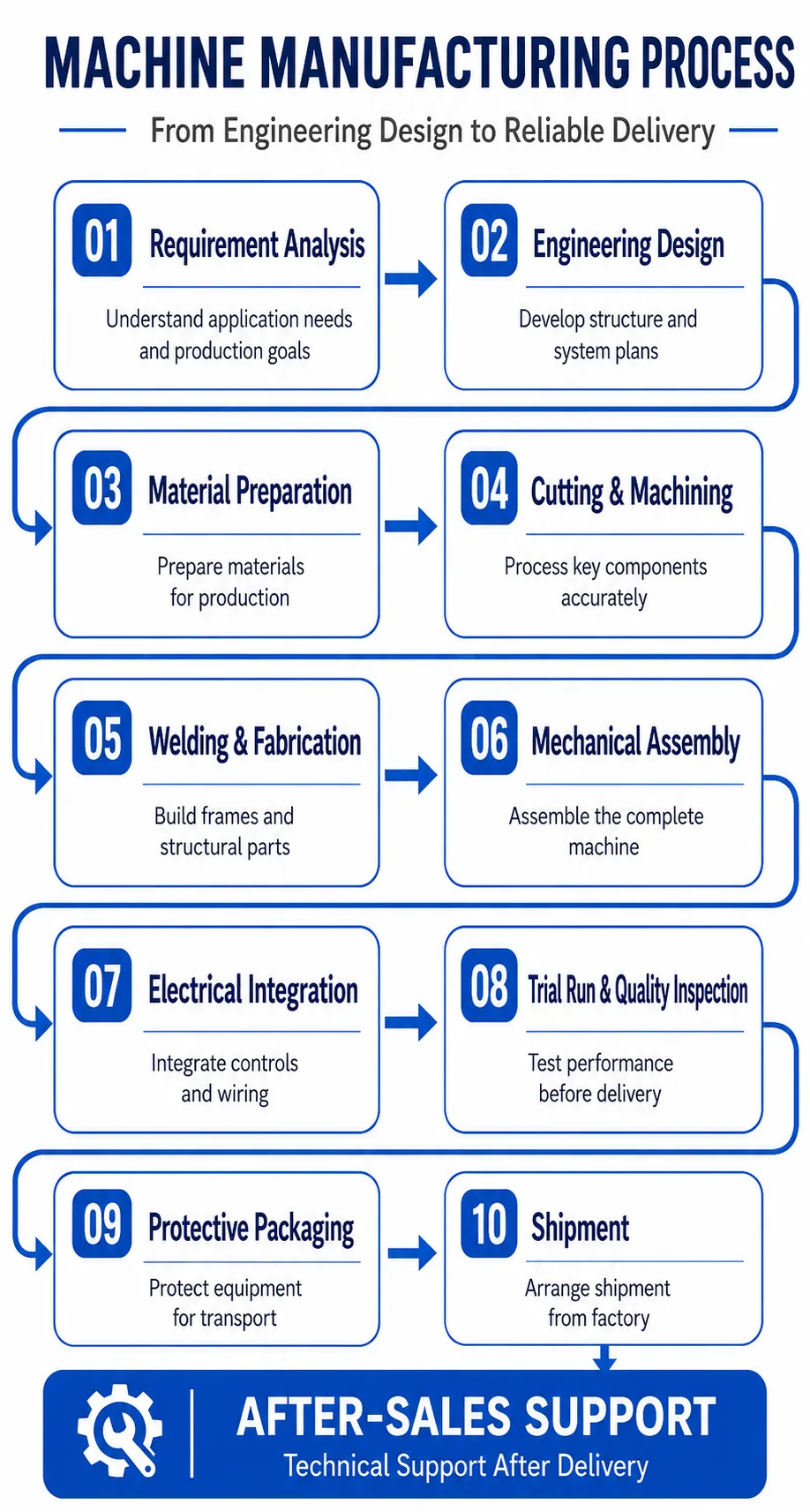

We provide integrated capabilities covering requirement analysis, engineering design, machining, welding, assembly, electrical integration, trial operation, inspection, packaging and technical support. Our equipment is developed for applications involving carpets, textiles, non woven materials and other flexible materials.
Our ISO 9001:2015 quality management system certification covers the manufacture of shoe-making machinery (cutting machines). We focus on reliable machine structures, practical production solutions and responsive customer service. From initial consultation to final delivery, our team works closely with customers to provide equipment solutions based on their materials, product specifications and production requirements.
