Description

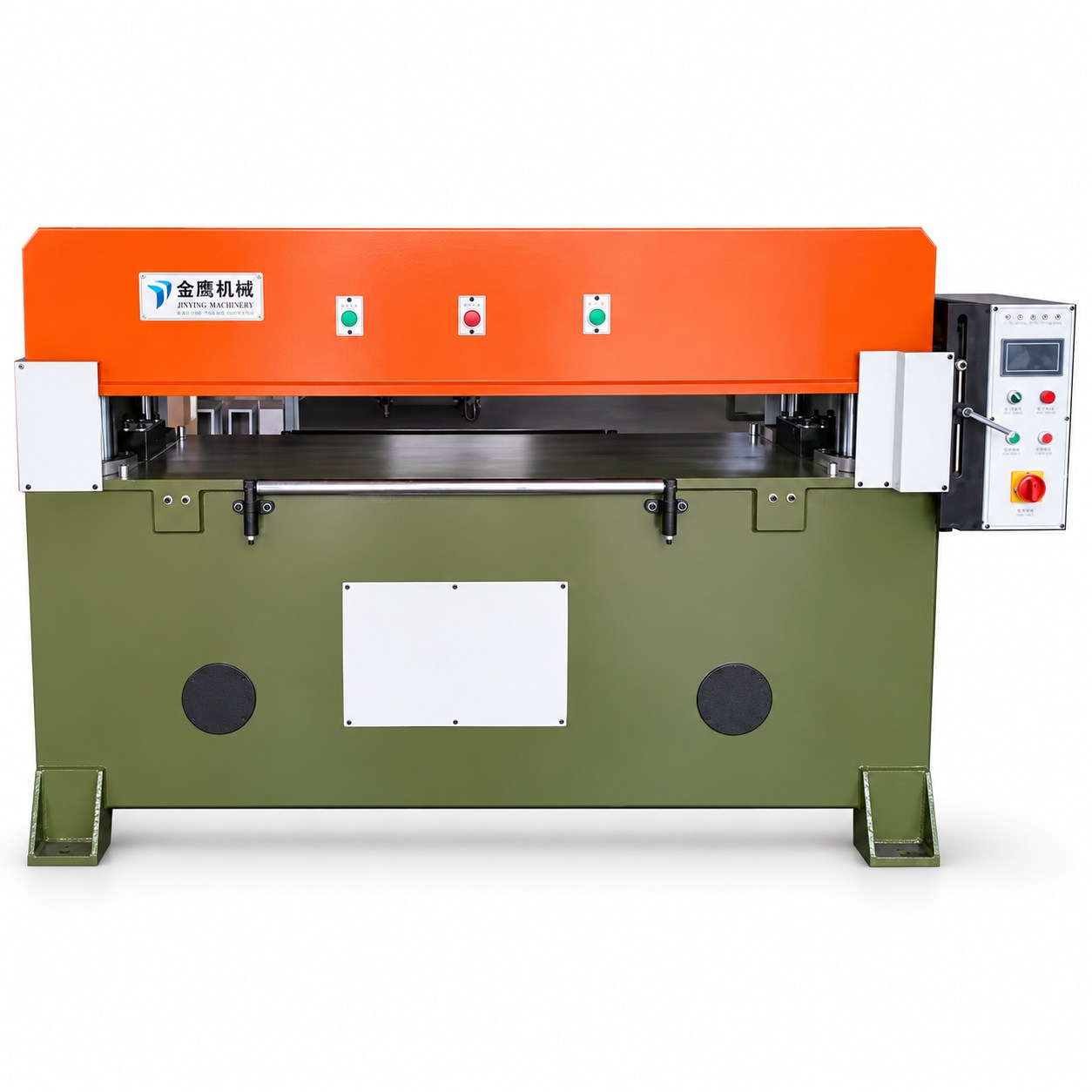

The GEA-F600 shoe-sole configuration is a 60-ton four-column hydraulic die cutting machine with a 1600 × 800 mm workbench and 5.5 kW motor. Select the cutting die around the sole outline, material and layout.
Key Specifications
| Maximum Cutting Force: | 60 Ton |
| Model: | GEA-F600 |
| Workbench Area: | 1600×800 mm |
| Motor: | 5500 W |
| Columns: | Four |
| Pump: | Double |
| Used for: | Blister, EVA, Foam, Leather, Fabric |
| Voltage: | 220 V / 380 V |
| Weight: | 3200 kg |
| Warranty: | 1 Year |
Four-Column Die Cutting for Footwear Parts
Check the sole material, thickness and die footprint before selecting the cutting force. A full-row or overall die layout needs to fit the usable cutting area.
See the GEA-F600 general machine configuration for the related press structure. The EVA insole application shows a separate footwear-cutting example.
