Description

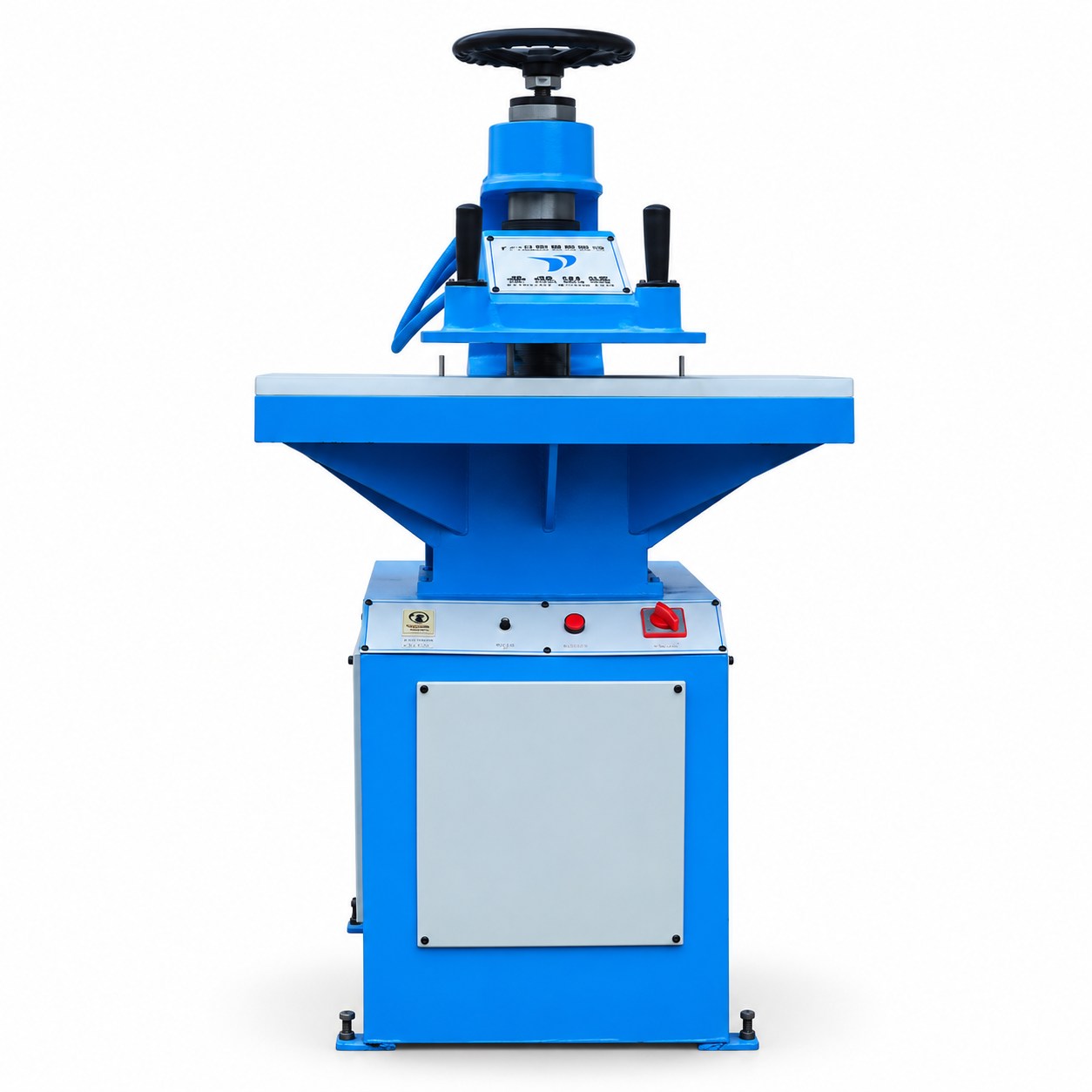

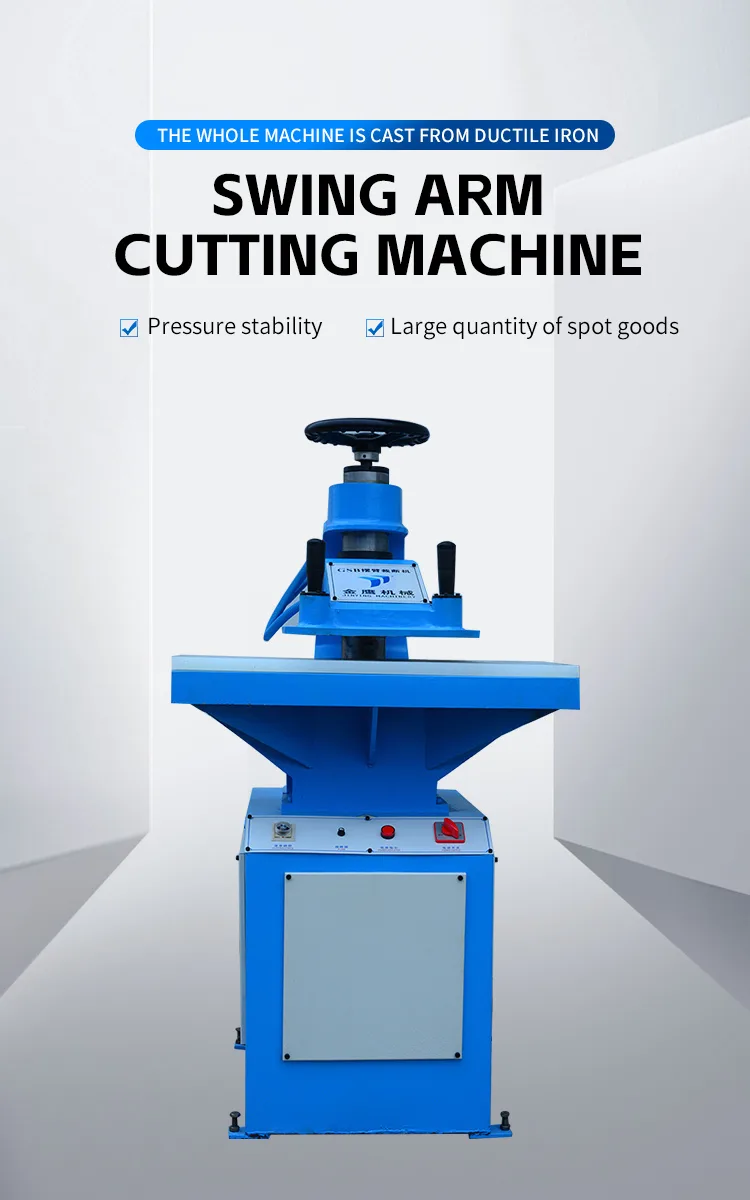

The GEA-S120 is a 12-ton swing arm clicker press for die cutting gaskets, shoe parts and other non-metal materials. It has a 350 × 380 mm upper workbench and a 750 W motor. The standard supply is 380 V, 50 Hz, three-phase; other voltage requirements and machine colors can be reviewed for customization.
Key Specifications
| Maximum Cutting Force: | 12 Ton |
| Model: | GEA-S120 |
| Upper Workbench Area: | 350×380 mm |
| Lower Workbench Area: | 400×800 mm |
| Motor Power: | 750 W |
| Voltage: | 380 V, 50 Hz, three-phase; other supplies on request |
| Weight: | 400 kg |
| Warranty: | 1 Year |
Swing Arm Die Cutting for Shoe Parts and Gaskets

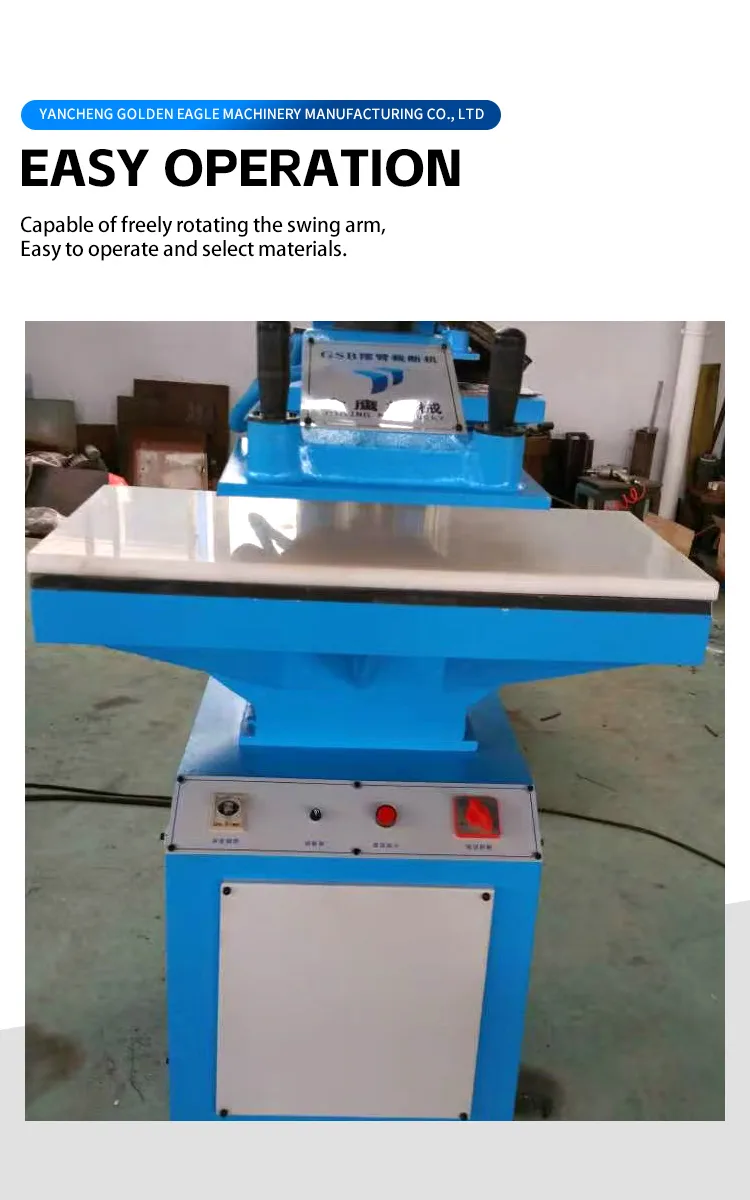

A swing arm clicker press cuts non-metal material with a shaped die. The arm swings away from the cutting area to leave room for positioning the material and die before the next cut.
Matching the Die to the GEA-S120
Check the die dimensions and intended placement against the upper and lower workbench areas listed above. The material, thickness and cutting outline also matter when selecting the required cutting force.
For a different press structure, compare the GEA-F600 four-column die cutting press, or return to the hydraulic die cutting machine range.
