Description
-

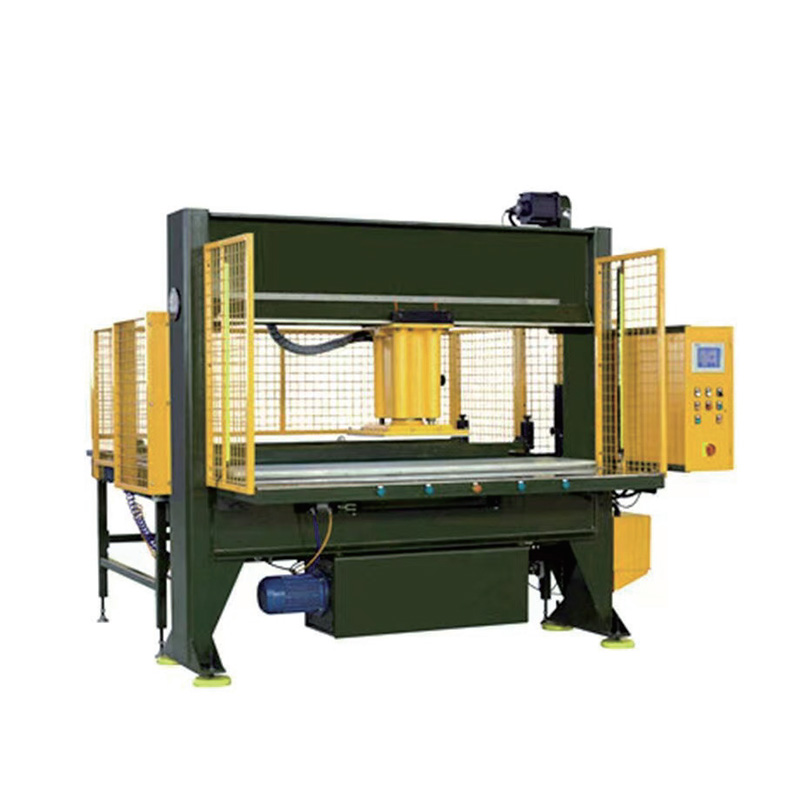

Purpose-built for high-volume, repeat-size die cutting of non-metallic materials using profiled steel-rule dies. Widely applied in the production of artificial flowers, sports balls, abrasive paper, facial masks, gloves, lens cloths and similar products.
-
PLC orchestrates simultaneous X-Y indexing and 360° die rotation, minimizing skeleton waste and maximizing material yield.
-
Pneumatic die-lifting device is supplied as standard, enabling rapid, effortless tool changes.
-
Comprehensive nesting library—grid, stagger, stagger-with-tool-reduction, rotation and custom modes—boosts raw-material utilization.
-
Non-volatile memory stores and recalls unlimited nesting recipes for instant changeovers.
-
Operator focuses solely on part collection, significantly reducing labor intensity.
MECHANICAL PARAMETERS
| Model | GEA-T250 | GEA-T400 | GEA-T600 |
|---|---|---|---|
| Maximum Cutting Force | 25Ton | 40Ton | 60Ton |
| Moving Head Size | 350*350mm | 400*400mm | 500*500mm |
| Table Area | 2000*500mm | 2200*500mm | 2400*600mm |
| Stroke Adjustment Range | 20-160mm | 20-160mm | 20-160mm |
| Cut-resistant Belts | PU | PU | PU |
| Rotation Angle | 360° | 360° | 360° |
| Feeding Motor | Servo Motor | Servo Motor | Servo Motor |
| Main Motor Power | 3000W | 4000W | 5500W |
