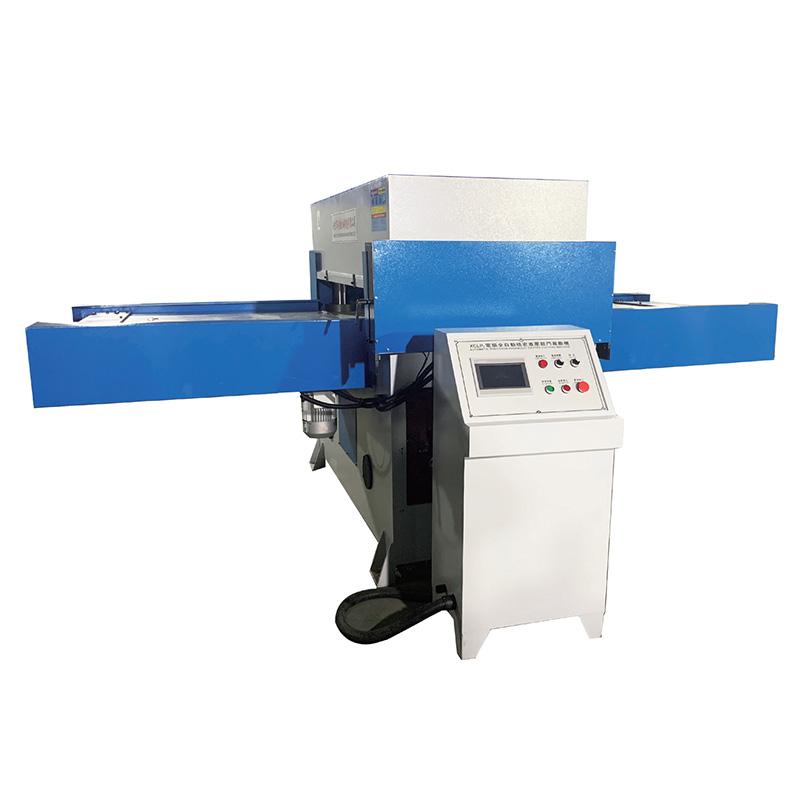

SINGLE AND DOUBLE FEEDING CUTTING MACHINE

Description

Engineered for high-volume cutting of medium-to-large sheets: single-use foam, EPE packaging, blister packs, automotive interior panels and similar materials.
PLC + HMI control allows independent programming of feed speed and cutting force.
Operator-selectable single-sided or dual-sided feeding.
In dual-sided mode, the system can run either side independently or alternate both sides in continuous loop.
Feed motor specifications and conveyor configuration can be tailored to customer requirements.

MECHANICAL PARAMETERS

Model	GEA-D600	GEA-D800	GEA-D1000
Maximum Cutting Force	60Ton	80Ton	100Ton
Table Area	1600*800mm	1600*800mm	1600*900mm
Stroke Adjustment Range	30-170mm	30-170mm	30-170mm
Feeding Speed	0-800mm/s	0-800mm/s	0-600mm/s
Feeding Plate	Aluminum Plate	Aluminum Plate	Aluminum Plate
Main Motor Power	5500W	7500W	11000W
