Description

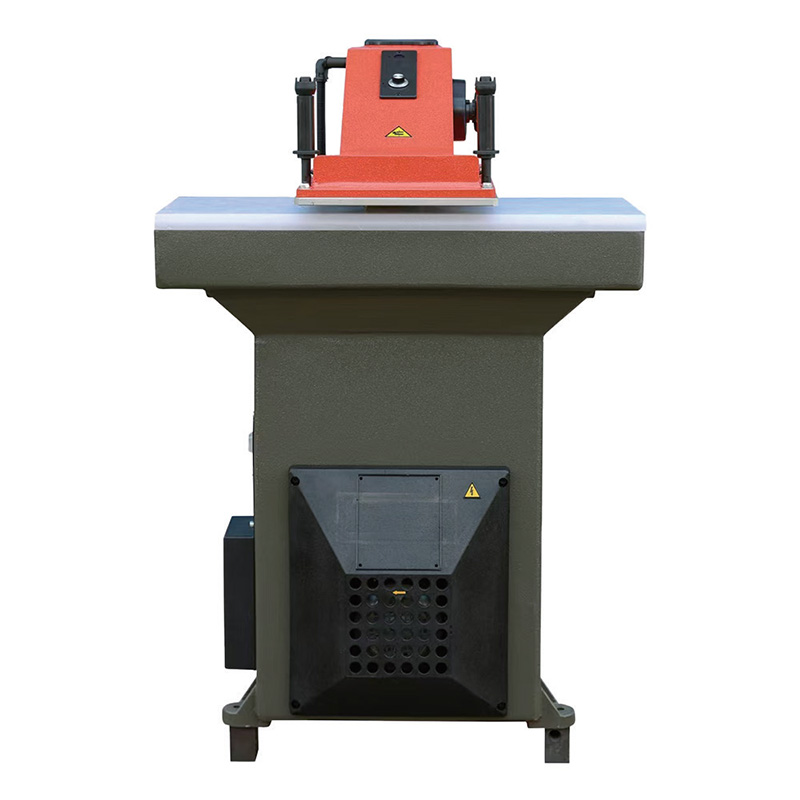

The GEA-S220 is a hydraulic swing arm cutting machine with a nominal cutting force of 22 tons (rated force: 220 kN). It is used with cutting dies to process suitable non-metallic flexible materials. Share your material and die dimensions so we can review the configuration for your application.
22-Ton Standard Configuration
| Model | GEA-S220 |
|---|---|
| Nominal cutting force | 22 tons (rated force: 220 kN) |
| Upper worktable | 370 × 450 mm |
| Lower worktable | 430 × 900 mm |
| Cutting speed | 0.085 m/s |
| Platen-to-table distance | 45–120 mm |
| Motor power | 1.1 kW |
| Standard electrical supply | 380 V, 50 Hz, three-phase |
Swing Arm Structure
The machine body is made of ductile cast iron. The hydraulic arrangement supports the upper worktable on an oil film to reduce resistance when the swing arm is moved.
Customization Available
Custom configurations are available on request. Voltage and machine color can be specified. Share any other configuration requirements for engineering review; the final specification is confirmed in the quotation.
Discuss Your Cutting Requirements
Send your material type and thickness, raw-material dimensions, cutting-die dimensions and required electrical supply. See our die cutting machine inquiry checklist or contact our team.
