Description
This semi-automatic four-column hydraulic clicker press series can be customized from 35 to 300 tons. Common cutting-force options are 40, 60 and 80 tons. The listed configuration includes PLC control and a safety light curtain.
Configuration Specifications
Motor power, machine weight and workbench dimensions must be confirmed for the selected cutting force and machine configuration.
| Automatic Grade: | Semi-Automatic |
| Driven Type: | Hydraulic |
| Common Cutting Force Options: | 40 Ton / 60 Ton / 80 Ton |
| Power: | 3 kW |
| Safety: | Light Curtain |
| Core Components: | PLC, Pump, Motor |
| Voltage: | 220 V / 380 V |
| Weight: | 1700 kg |
| Warranty: | 1 Year |
40, 60 and 80 Ton Four-Column Press Options
Choose the cutting force around the material and cutting die. The die dimensions and total cutting outline need to be considered alongside the material thickness and workbench layout.
For a defined 60-ton configuration with a 1600 × 800 mm workbench, see the GEA-F600 four-column hydraulic cutting machine.
Custom Cutting Force from 35 to 300 Tons
Share the cutting-die dimensions, material thickness and finished-part layout to specify a machine within the custom range. Workbench size and the final electrical and machine specifications are confirmed for that configuration.
Compare swing arm, four-column and travelling-head die cutting machines, or read the material and die specification checklist.

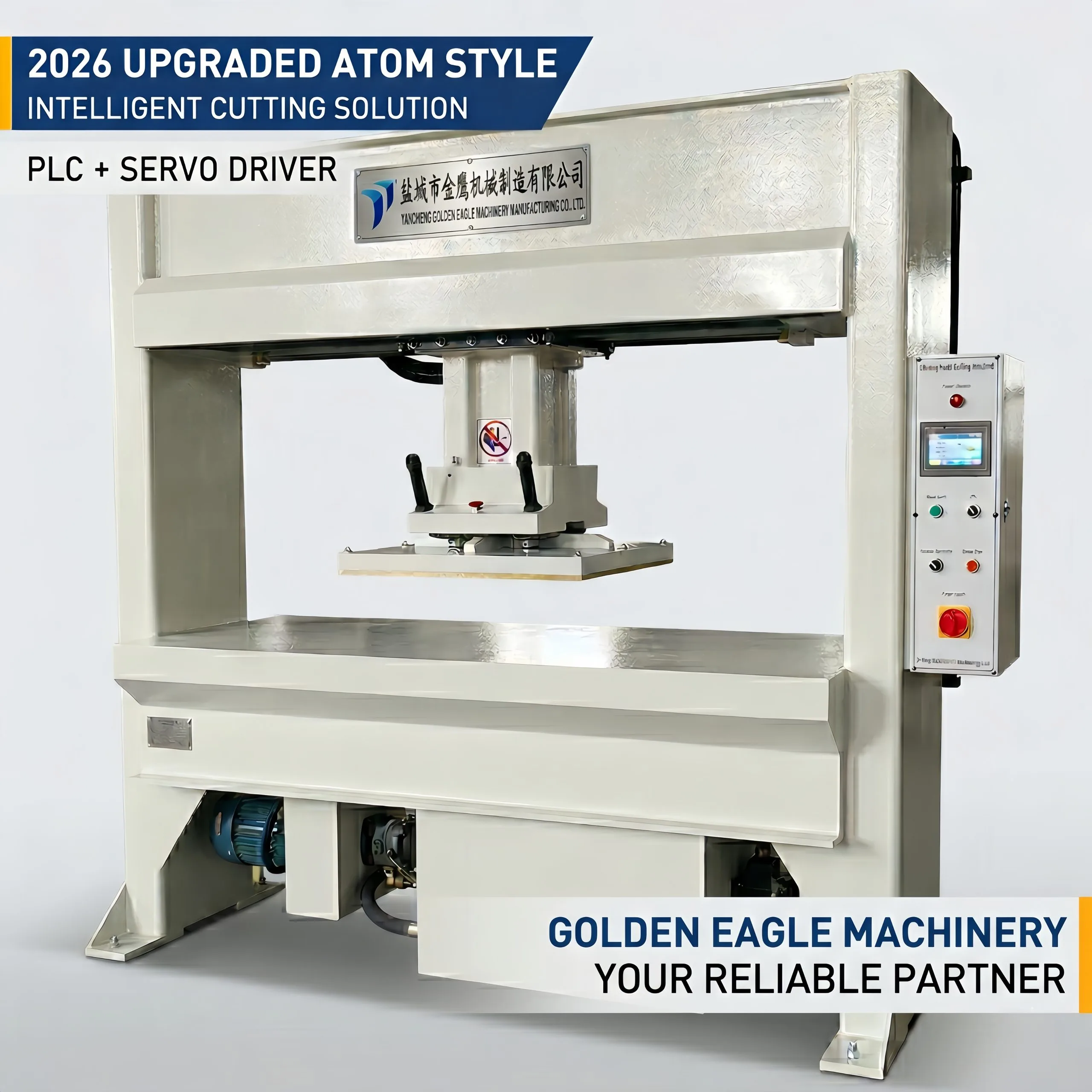

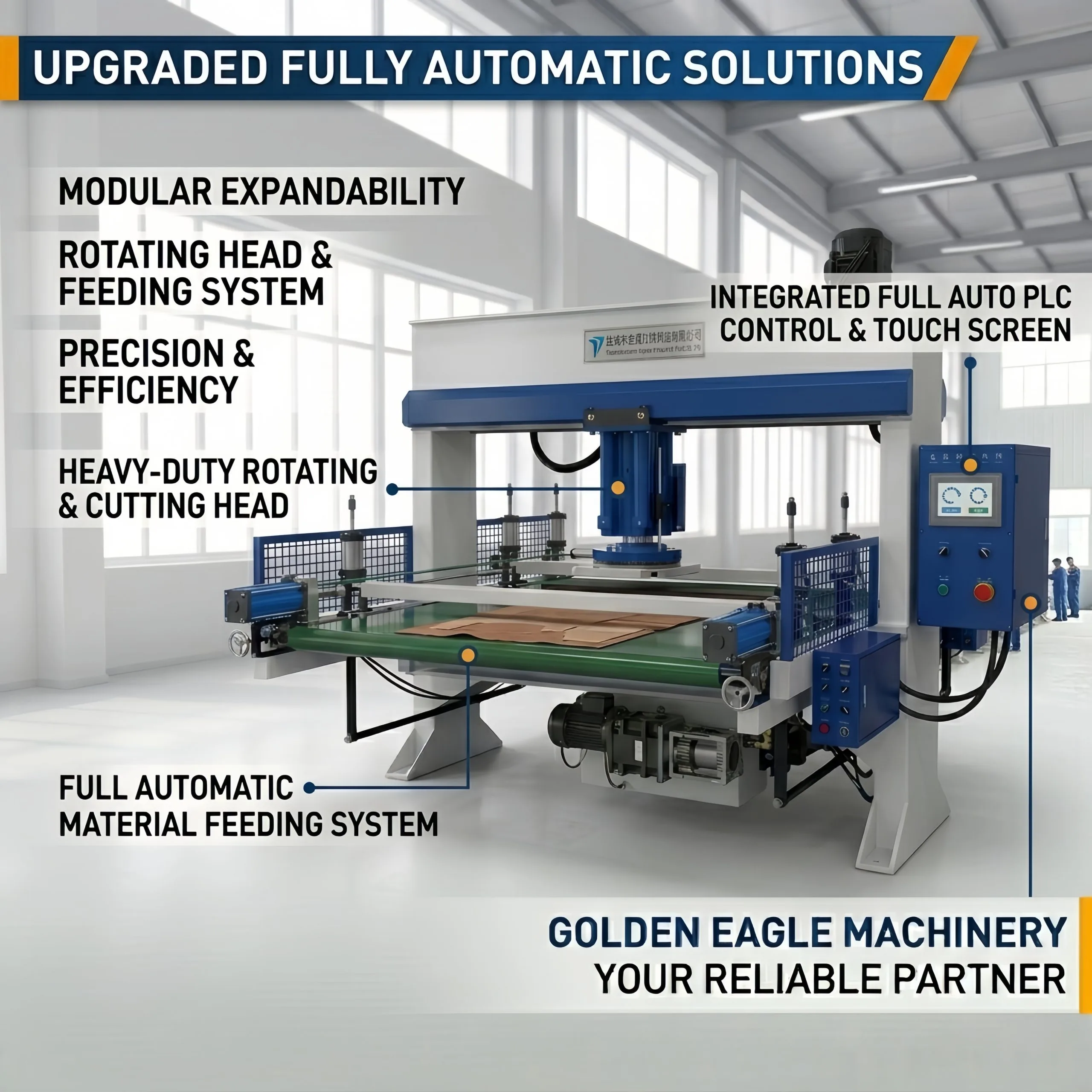

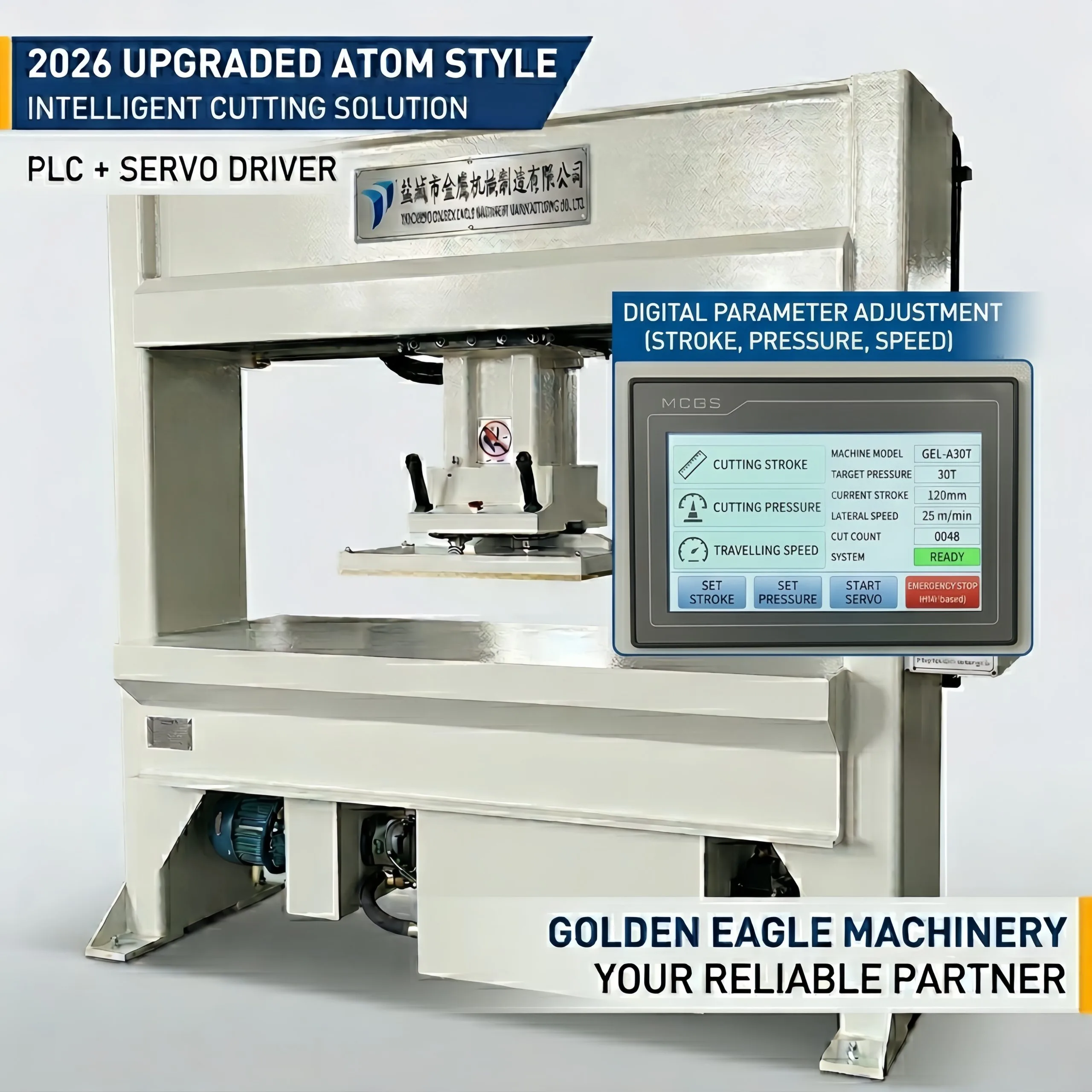

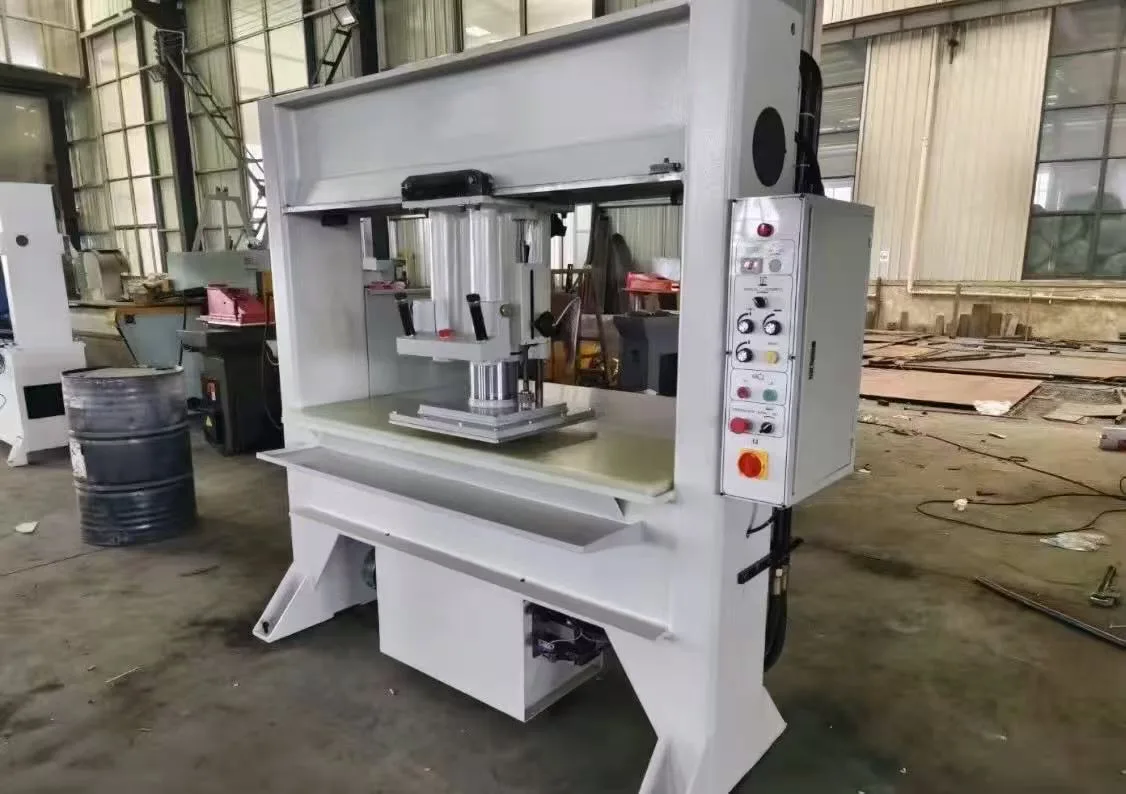

Product Gallery
About Our Company
Yancheng Golden Eagle Machinery Manufacturing Co., Ltd. has manufactured flexible-material processing machinery since 2007.
We provide integrated capabilities covering requirement analysis, engineering design, machining, welding, assembly, electrical integration, trial operation, inspection, packaging and technical support. Our equipment is developed for applications involving carpets, textiles, non woven materials and other flexible materials.
Our ISO 9001:2015 quality management system certification covers the manufacture of shoe-making machinery (cutting machines). We focus on reliable machine structures, practical production solutions and responsive customer service. From initial consultation to final delivery, our team works closely with customers to provide equipment solutions based on their materials, product specifications and production requirements.
