Description

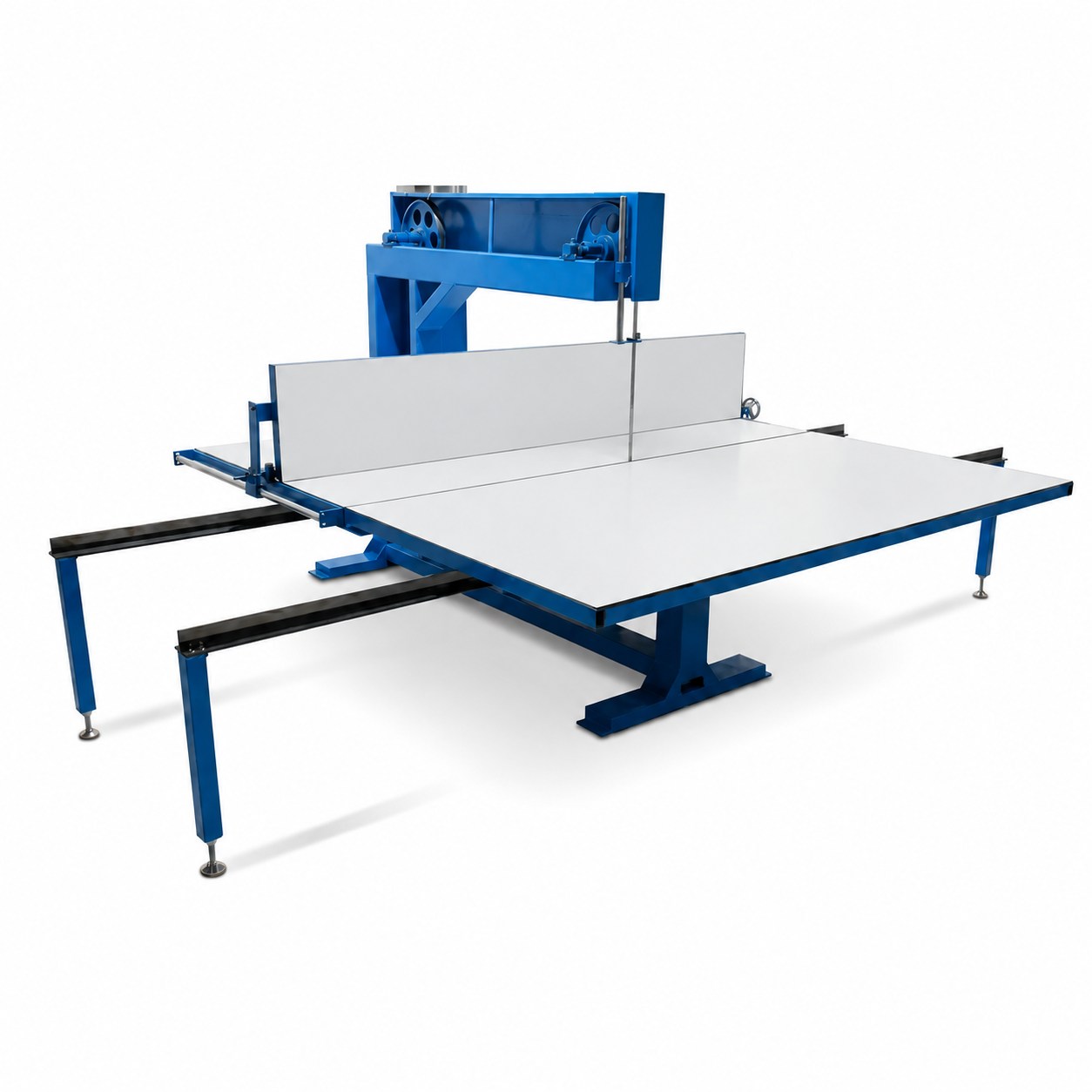

The GEA-V1200 is a vertical cutting machine for preparing PU, EVA and PE foam sections. The listed configuration uses a 2.2 kW motor; the required material size and cutting height should be checked for the selected machine.
Key Specifications
| Model: | GEA-V1200 |
| Machine Type: | Vertical Cutting Machine |
| Cutting Speed: | 5-20 m/min |
| Max Product Size: | 2400x1200x600 mm |
| Control System: | DSP |
| Power: | 2.2 kW |
| Voltage: | 380 V / 110 V |
| Weight: | 600 kg |
| Warranty: | 1 Year |
Prepare Foam Sections for the Next Operation
Choose the blank dimensions around the next process and the way the material will be handled. This vertical-cutting operation reduces the section size rather than splitting the foam into thinner layers.
For table-size choices, review the vertical foam cutter series. The EPE pre-cutting guide explains one downstream die-cutting application.
